ECU Diagnostic Tools Product overview

Keep pace with the ever-increasing complexity of vehicle systems: Bosch's diagnostic testers and ESI[tronic] Evolution diagnostic software enables you to safely perform diagnostics, identify faults, and repair vehicles. The KTS ECU diagnostic testers, optionally with channel multimeter and oscilloscope, are precise and easy to use. Designed for everyday use in the automotive workshop in a cross-brand diagnosis.

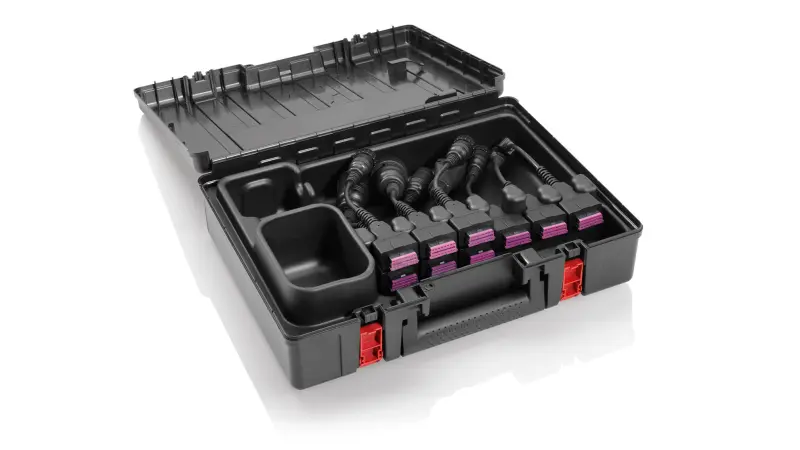

Easy Connect - Adapter Cables

Easy Connect
Adapter
Cables

The adapter concept ensures that the diagnostic module can be connected to the vehicle by using different adapter cables.

Bosch Diagnostic KTS 560
0 684 400 560

KTS 560
– ECU Diagnostic tool for all current and future vehicles, with
multimeter

Optimise your vehicle diagnostic process and all-round workshop capability using this robust, wireless diagnosis module. Built-in measurement equipment will locate electrical issues in no time at all.

KTS 590 green picture
0 684 400 590

KTS 590
– ECU Diagnostic tool for all current and future vehicles, with multimeter and
oscilloscope

Achieve the ultimate in diagnosis, repair and service with this high-spec wireless module. Advanced 2-channel multimeter and oscilloscope locate and evaluate electrical issues for speedy resolution.

KTS Truck
0 684 400 534

KTS Truck
– Modular diagnostic solution for commercial vehicle
workshops

Maximise commercial vehicle opportunities and get quick answers to problems with this versatile diagnostics solution. Complete with vehicle-specific adapters for easy connection to many makes/models.

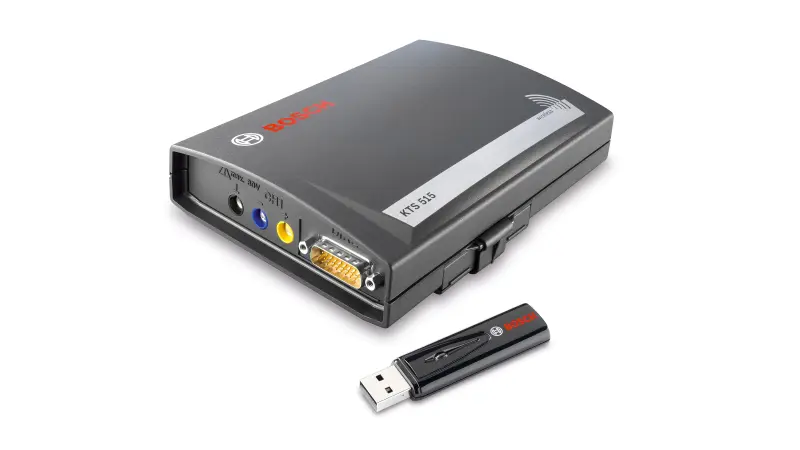

KTS 515
0 684 400 515

KTS 515
– Entry level solution for Global OBD
II

Offering workshops an intuitive and fast, entry-level solution to the testing of emission values: The KTS 515 is a mobile device which includes OBD (on-board diagnostics). It is easily connected to either a PC or notebook via USB or Bluetooth.

KTS 960 green image
0 684 400 612

KTS 960
– Complete diagnostic wireless solution: DCU 220 + KTS
560

Enhance the sophistication of your vehicle diagnostics and improve your capabilities with this robust, wireless KTS 560 module controlled with the adaptable DCU 220 that’s both laptop and tablet PC.

KTS 980 green image
0 684 400 622

KTS 980
– Complete wireless solution with professional measuring technology: DCU 220 + KTS
590

Gear up your workshop for fast, highly advanced and future-proofed diagnosis. Combine KTS 590 and DCU 220 for a high-spec wireless module with an adaptable laptop/tablet PC controller in one.

DCU 220 green back
0 684 400 242

DCU 220
– Robust diagnostic notebook including tablet and state-of-the-art
technology

Enjoy this highly versatile and robust diagnostic controller which is both laptop and tablet PC in one for optimal use. Powerful and quick, it connects to ESI[tronic] Evolution startup in just 30 seconds.

KTS 350 car cabin

Euro 5 / PassThru
Control unit diagnosis and
reprogramming

Control unit diagnosis and reprogramming through Euro 5 / PassThru with the vehicle manufacturer’s data.

TPA 300
0 684 400 253

TPA 300
– Programming tool for configuration of TPMS
sensors

TPA 300 has been specially developed for a simple and safe vehicle-specific configuration of TPMS sensors. The tool is compact, easy to use and supports a wide range of universal TPMS sensors.

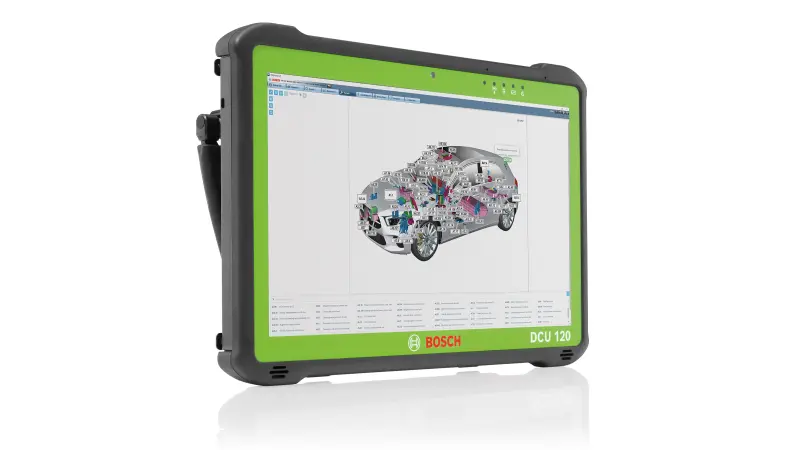

DCU 120
0 684 400 124

DCU 120
– Robust tablet PC for mobile workshop
use

The DCU 120 with 11.6-inch Full HD display and fast processor is a robust and handy tablet PC for mobile workshop use. For comprehensive connectivity, it offers interfaces according to current technology standards.

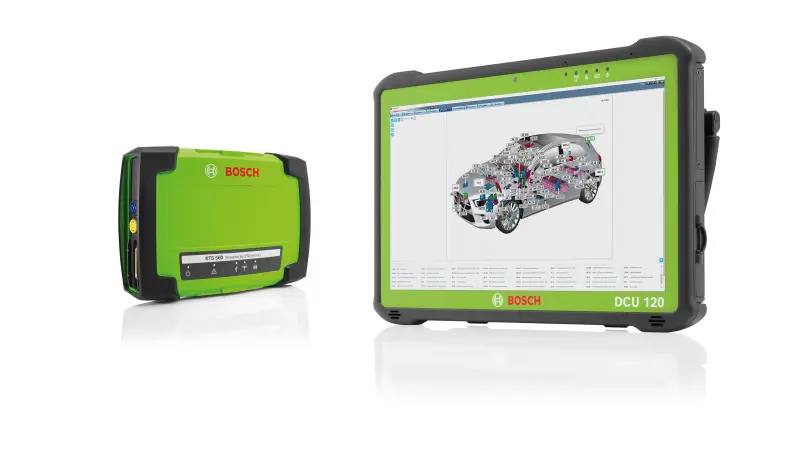

KTS 465
S P09 000 031

KTS 465
– Diagnostic solution with DCU 120 and KTS
560

The basic diagnostic system KTS 465 enables efficient and flexible work in the workshop. The system combines the robust KTS 560 module with the mobile DCU 120 tablet PC.

Diagnostic devices from Bosch

Diagnostic devices from Bosch

Handy, robust and precise: the professional automotive diagnostic devices from Bosch are designed for everyday use in the workshop. Simply connect, read out the OBD interface and start diagnosing. In combination with a workshop PC or a DCU 220 Convertible PC and the ESI[tronic] Evolution diagnostic software, workshops can use the OBD diagnostic devices to read out, diagnose and repair a wide range of vehicles - whether passenger cars, commercial vehicles, buses, or agricultural and construction machinery.

Diagnostic Combi with ESI[tronic] Evolution

More readout options: With the Bosch diagnostic software ESI[tronic] Evolution, testing of over 150 worldwide brands is possible. Included, depending on the license and package, are maintenance and wiring diagrams, diagnostic functions, repair and troubleshooting instructions, and vehicle data. The vehicle coverage is growing steadily.

Calibrating driver assistance systems correctly

Front cameras and front radar of modern driver assistance systems, also called ADAS, are installed in more and more vehicles. Since these are safety-relevant components in the vehicle, precise and professional calibration according to manufacturer specifications is necessary. This is where the DAS 3000 S20 comes in. As a scalable, computer-aided calibration and adjustment device for body stores and workshop professionals, it rounds off the Bosch range of diagnostic devices.

Cross-brand diagnostics with Euro 5/PassThru

Since 2009, the Euro 5 standard has been taking effect with PassThru. This means that exclusive services provided by authorized workshops are now also available to independent workshops. Services such as the creation of an electronic service manual, the programming of components or the coding of keys can be offered independently of the supplier. With Bosch's PassThru interface, workshops can use the vehicle manufacturers' Internet portals as usual for diagnosis, reprogramming, repair and maintenance in the independent workshop.

Connection via OBD interface and Bluetooth

The Bosch automotive diagnostic devices offer a simple system for readout, diagnosis, maintenance and co. The options include a Bluetooth system in addition to connection to the OBD interface. Additional adapters for trucks, for example, make the readout devices a versatile companion for workshops. Simply connect the vehicle to the Bosch diagnostic device via the OBD interface, and then diagnose, maintain and repair the vehicle via Bluetooth using the PC or a Bosch DCU 220.
